Congenital intrahepatic portosystemic shunts (IPSS) are abnormal communications between hepatic and portal vessels. The accurate diagnosis is usually made in the early neonatal life. As these abnormalities do not cause significant influence on fetal well-being, their recognition prenatally remains poor. Some case reports have described possible association between IPSS and fetal growth restriction. However, to date there are no published reports describing prenatal IPSS in IUGR fetus with fetal anemia and cardiomegaly. The spectrum of consequences, such as development of growth restriction, cerebral hyperperfusion and hyperdynamic heart function in association with IPSS as a rare anomaly, are potential prenatal characteristics. This may trigger timely diagnostic work up directed to reach early diagnosis and plan the optimal management. This is the first case report of prenatal IPSS in IUGR fetus with transient severe anemia and cardiomegaly.

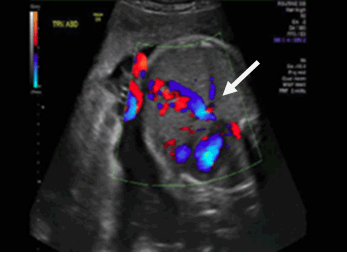

A 37-year-old healthy primiparous woman was referred to our tertiary care hospital at 27th week and 6 days of gestation for the evaluation of fetal growth. Ultrasound revealed IUGR fetus with overall growth at the 9th centile. Amniotic fluid was adequate for gestational age. Color and pulse Doppler were utilized according to standard application rules to assess the blood flow resistance in umbilical artery (UA) and middle cerebral artery (MCA) [1] [2]. Umbilical artery and MCA pulsatility indices (PI) were normal with low resistance to flow. However, MCA peak systolic velocity (PSV) showed high forward stream, 73 cm/sec (1.9 MoM), raising the suspicion of severe fetal anemia. Fetal liver was enlarged with abnormal circulation consisting of tortuous dilated intrahepatic vessels originating from the umbilical vein and giving off several branches with no clear end point communication sites (Figure 1). Possible presence of IPSS with unclear anatomical point of anastomosis was suspected. Amniocentesis for karyotype was offered but the woman declined. TORCH screen was negative. Fetal Echocardiography demonstrated mild cardiomegaly with hyperdynamic flow of unclear underlying cause. During the course of pregnancy, fetal surveillance was carried out with weekly ultrasound assessments as the overall fetal growth, stayed below the 10th centile with slow but steady decrease to below the 3rd centile by 37 weeks and 6 days. The UA, MCA and ductus venosus (DV) impedance flow remained normal; however MCA PSV was fluctuating between 1.07–1.96 MoM throughout gestation. Intrauterine fetal blood transfusion was not performed as there were no clear causes for development of fetal anemia. Intrahepatic vessels' diameters were stable with overall unchanged appearance throughout the course of the pregnancy. Labor was electively induced at 38th week of gestation for IUGR and minimal growth interval.

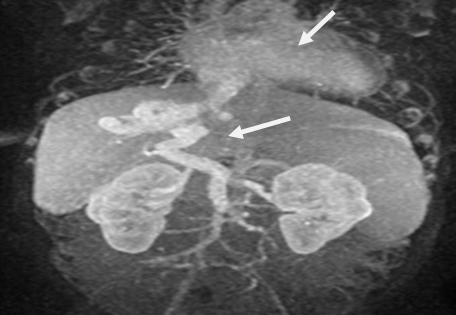

The outcome was a vigorous female, symmetric IUGR weighing 2280 grams (3rd percentile), head circumference 31 cm (3rd percentile) and length 45 cm (3rd percentile). APGAR score was 7 and 8 in first and fifth minute and cord pH 7.15. The neonate was admitted to the neonatal intensive care unit for further assessment and investigations. There was no respiratory distress and O₂ saturations were 100% on room air. Baseline liver function tests and coagulation profile were within normal values. She had a small patent foramen ovale (PFO) that required follow-up at third month of life. Her CBC was reflective of IUGR with normal WBC at 11.7 x10⁹/L, hemoglobin at 189 g/l and a thrombocytopenia with platelets at 58x10⁹/L, which was transient and did not require transfusion. Phototherapy was implemented due to non-immune hyperbilirubinemia that resolved within 48 hours. Genetics testing failed to reveal any abnormalities including a normal karyotype; microarray 101 K oligonucleotide platform sequencing, deletion duplication analysis of ENG and ACVRL1 gene and 7-dehydrocholesterol excluded Smith-Lemli-Opitz. Postnatal abdominal ultrasound, as well as MRI scan, confirmed mild hepatomegaly with 4 vessels branching medially from the middle hepatic vein and communicating with the large left portal vein, representing IPSS (Figure 2) and (Figure 3).

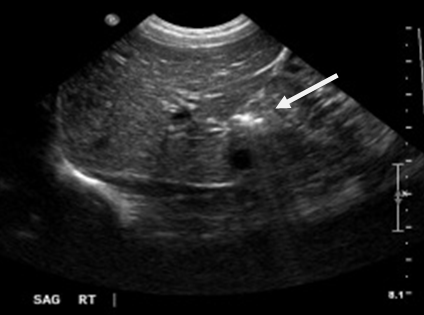

Overall, the neonatal course was uneventful; breastfeeding was started ad lib from admission to discharge with no other relevant associated issues. Voiding and stooling were regular. The child was discharged home at second week of life. One year follow-up ultrasound showed spontaneous resolution of IPSS (Figure 4). The infant is currently 22-month-old, healthy with normal growth and development.

Intrahepatic shunts are rarely recognised anomalies in utero. Their precise incidence is unknown and most of their pathophysiology is described through the neonatal or infantile periods of life [3]. The IPSS may also represent one of the features of the multisystem morbidities among children, and adults. Luckily our case did not show any other comorbidities like hypoxemia or pulmonary hypertension at birth nor behavioral changes were noted, as it has been reported recently [4]. Literature review revealed two case reports of four cases with IPSS diagnosed prenatally [5] [6]. One case report described IPSS associated with IUGR and abnormal DV Doppler, whereas a second one, described three cases of various porto-hepatic anastomoses with spontaneous closure in the first few months of infants' lives.

To our knowledge, no published cases exist demonstrating prenatally diagnosed IPSS in IUGR fetus with concomitant development of fetal anemia and cardiomegaly. Application of colour Doppler was crucial to make the prenatal diagnosis [7]. The IPSS was classified as type 2, according to Park's classification [8].

The IUGR is commonly developed in fetuses with IPSS [3] [4]. Hypoperfusion and/or abnormal vessels' routes deviations, leave hepatocytes with decreased blood supply which ultimately leads to diminished cell proliferation and hypoxia [9][10][11]. Moreover, levels of liver enzymes, tested in neonatal period, show downregulation of hepatic cells which is probably one of the underlying causes that contributes to the smaller abdominal circumferences as a first abnormal feature in these fetuses, destined to remain small for the rest of the pregnancy [12]. Generally, IUGR fetuses are prone to develop polycythemia, thrombocytopenia and sometimes neutropenia due to decreased blood flow through the liver and bone marrow. Interestingly, blood flow remains normal which excludes placental insufficiency as a cause for IUGR. Although feto-placental blood perfusion remained normal with low impedance to flow, in our case, the fluctuating levels of MCA PSV throughout the gestation were not quite understood. We hypothesised two possible explanations.

Firstly, the presence of a shunt may have caused shifting of the high stream blood flow to the heart, causing a hyperdynamic state which would have ultimately contributed to higher cerebral redistribution. Secondly, we can speculate that there was increased sequestration of red blood cells in the spleen, perhaps due to splenic stasis and poor venous flow as the baby was thrombocytopenic and hyperbilirubinemic after birth; in retrospect, the process may have started much earlier in utero. Regardless of the potential cause, the low count of blood cells was inconsistent and did not cause deterioration in fetal well-being.

We did not consider fetal blood transfusion at any point throughout the pregnancy as no obvious causes for the fetal anemia were found, and furthermore, there was no progression into fetal hydrops. This was confirmed later on, in the postnatal period as the neonate never required blood transfusion. In some cases a surgical or interventional radiology is needed to treat IPSS. In our case, no intervention was necessary as follow-up imaging revealed complete resolution of IPSS [13] [14].

In conclusion, this case exemplifies that unexplained fetal growth restriction with hyperdynamic heart function state, should prompt a thorough evaluation of the hepatic circulation. This will allow the detection of crucial congenital vascular malformations and therefore facilitate antenatal and postnatal management. Furthermore, prenatal signs of increased cerebral perfusion along with hyperdynamic heart function may not necessarily require treatment with blood transfusion in utero, as described in our case, but rather close follow-up after birth.

1. Veille JC, Hanson R, Tatum K. Longitudinal quantitation of middle cerebral artery blood flow in normal human fetuses. Am J Obstet Gynecol 1993 Dec;169(6):1393–8.   [CrossRef]   [Pubmed]
2. Bhide A, Acharya G, Bilardo CM, et al. ISUOG practice guidelines: use of Doppler ultrasonography in obstetrics. Ultrasound Obstet Gynecol 2013 Feb;41(2):233–39.   [CrossRef]   [Pubmed]
3. Han BH, Park SB, Song MJ, et al. Congenital portosystemic shunts: prenatal manifestations with postnatal confirmation and follow-up. J Ultrasound Med 2013 Jan;32(1):45–52.   [Pubmed]
4. Sokollik C, Bandsma RH, Gana JC, van den Heuvel M, Ling SC. Congenital portosystemic shunt: characterization of a multisystem disease. J Pediatr Gastroenterol Nutr 2013 Jun;56(6):675–81.   [CrossRef]   [Pubmed]
5. Delle Chiaie L, Neuberger P, Von Kalle T. Congenital intrahepatic portosystemic shunt: prenatal diagnosis and possible influence on fetal growth. Ultrasound Obstet Gynecol 2008 Aug;32(2):233–5.   [CrossRef]   [Pubmed]
6. Jerabek-Klestil S, Brantner C, Nehoda R, D'Costa E, Campei S, Scheier M. Prenatal sonographic diagnosis of intrahepatic portosystemic shunts. J Ultrasound Med 2014 Mar;33(3):543–6.   [CrossRef]   [Pubmed]
7. Hyung JP, Hoon SC, Han KJ, Chung MH. Case Report: Intrahepatic Portosystemic Venous Shunt. American Journal of Roentgenology 1990;527–8.
8. Valls E, Ceres L, Urbaneja A, Muñoz R, Alonso I. Color Doppler sonography in the diagnosis of neonatal intrahepatic portosystemic shunts. J Clin Ultrasound 2000 Jan;28(1):42–6.   [CrossRef]   [Pubmed]
9. Tchirikov M, Schröder HJ, Hecher K. Ductus venosus shunting in the fetal venous circulation: Regulatory mechanisms, diagnostic methods and medical importance. Ultrasound Obstet Gynecol 2006 Apr;27(4):452–61.   [CrossRef]   [Pubmed]
10. Kessler J, Rasmussen S, Godfrey K, Hanson M, Kiserud T. Fetal growth restriction is associated with prioritization of umbilical blood flow to the left hepatic lobe at the expense of the right lobe. Pediatr Res 2009 Jul;66(1):113–7.   [CrossRef]   [Pubmed]
11. Kessler J, Rasmussen S, Godfrey K, Hanson M, Kiserud T. Longitudinal study of umbilical and portal venous blood flow to the fetal liver: low pregnancy weight gain is associated with preferential supply to the fetal left liver lobe. Pediatr Res 2008 Mar;63(3):315–20.   [CrossRef]   [Pubmed]
12. Kocylowski R, Dubiel M, Gudmundsson S, Fritzer E, Kiserud T, von Kaisenberg C. Hepatic aminotransferases of normal and IUGR fetuses in cord blood at birth. Early Hum Dev 2012 Jul;88(7):461–5.   [CrossRef]   [Pubmed]
13. Grimaldi C, Monti L, Falappa P, d'Ambrosio G, Manca A, de Ville de Goyet J. Congenital intrahepatic portohepatic shunt managed by interventional radiologic occlusion: a case report and literature review. J Pediatr Surg 2012 Feb;47(2):e27–31.   [CrossRef]   [Pubmed]
14. Bernard O, Franchi-Abella S, Branchereau S, Pariente D, Gauthier F, Congenital portosystemic shunts in children: recognition, evaluation, and management. Semin Liver Dis 2012 Nov;32(4):273–87.   [CrossRef]   [Pubmed]
